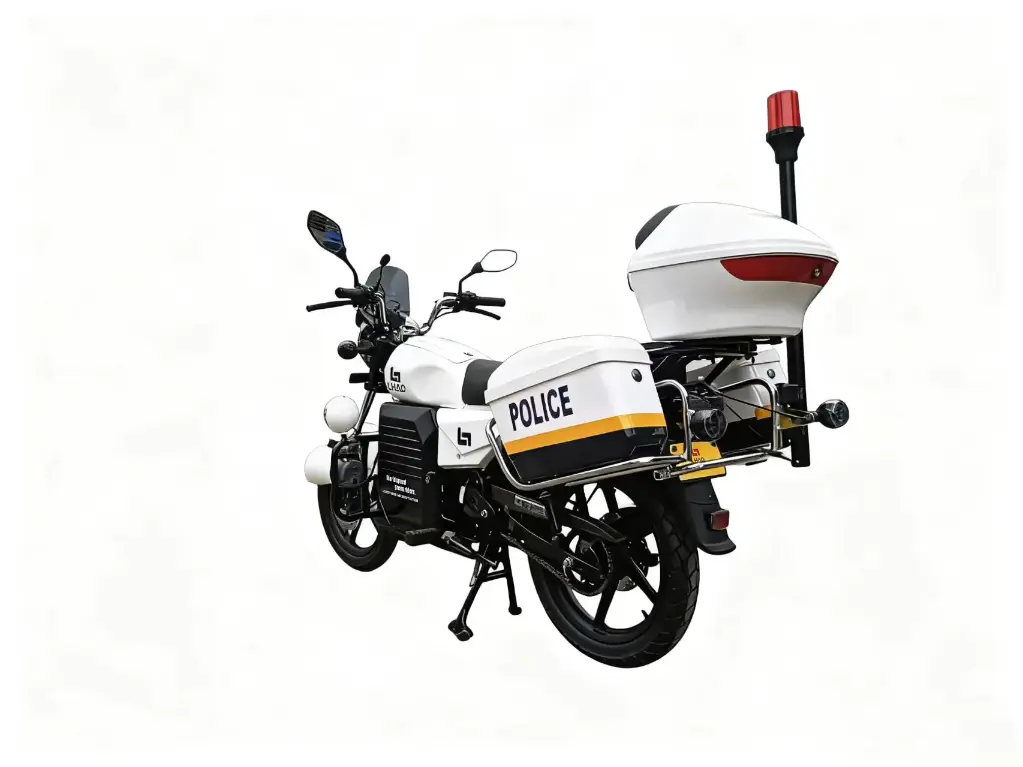

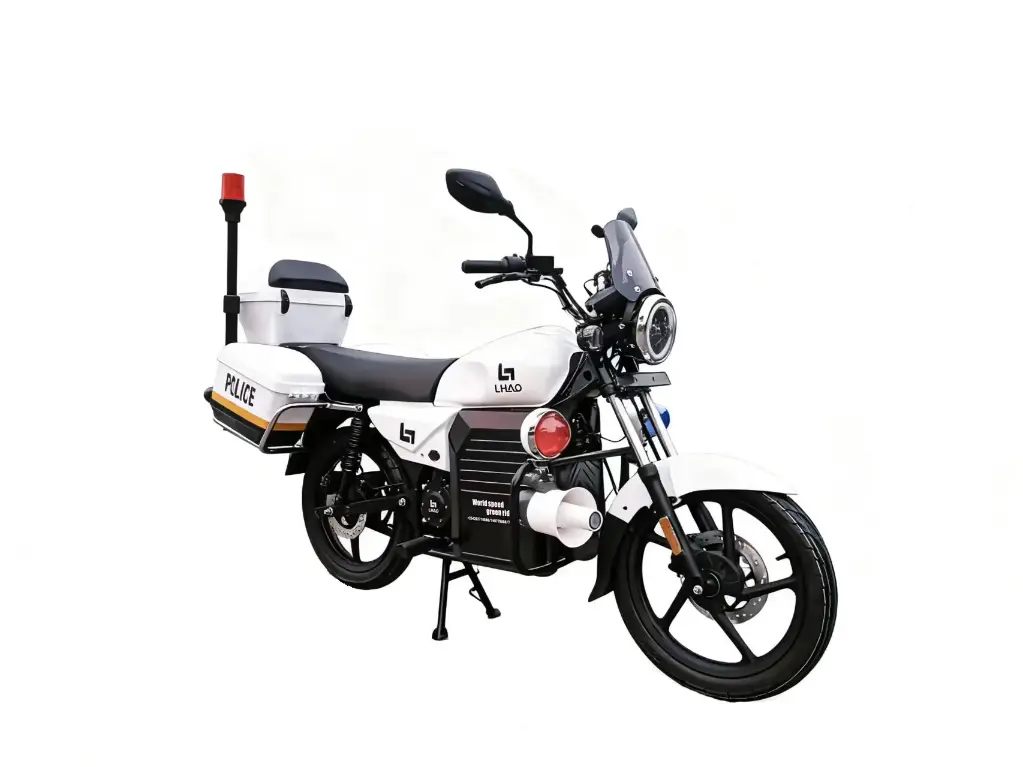

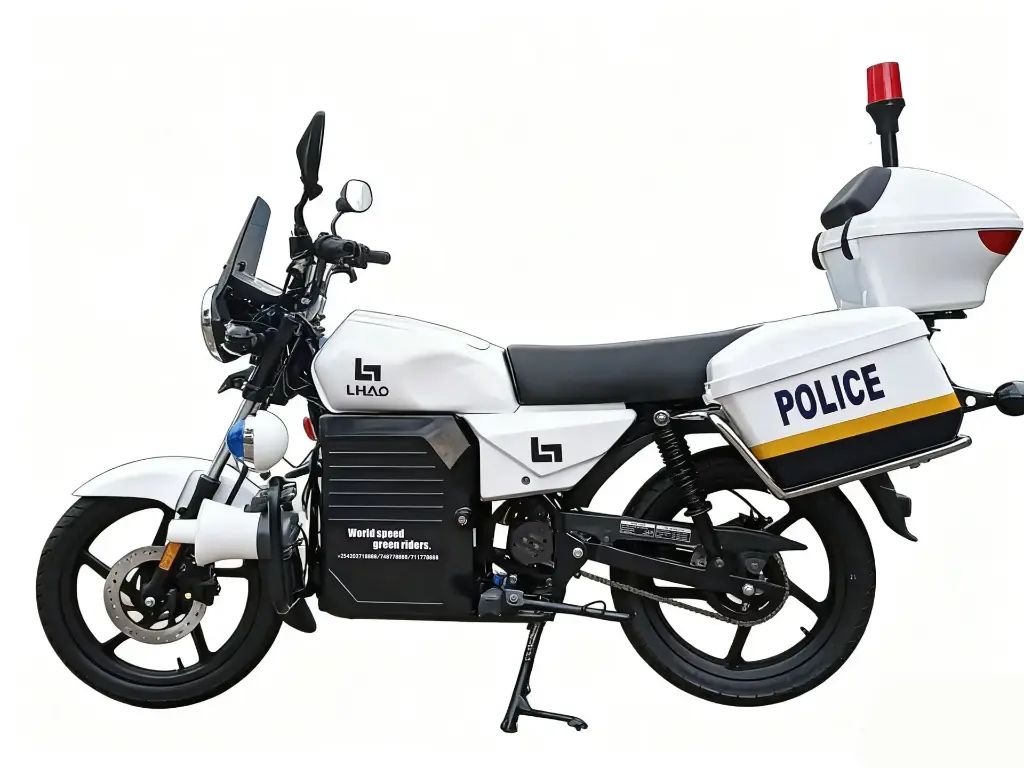

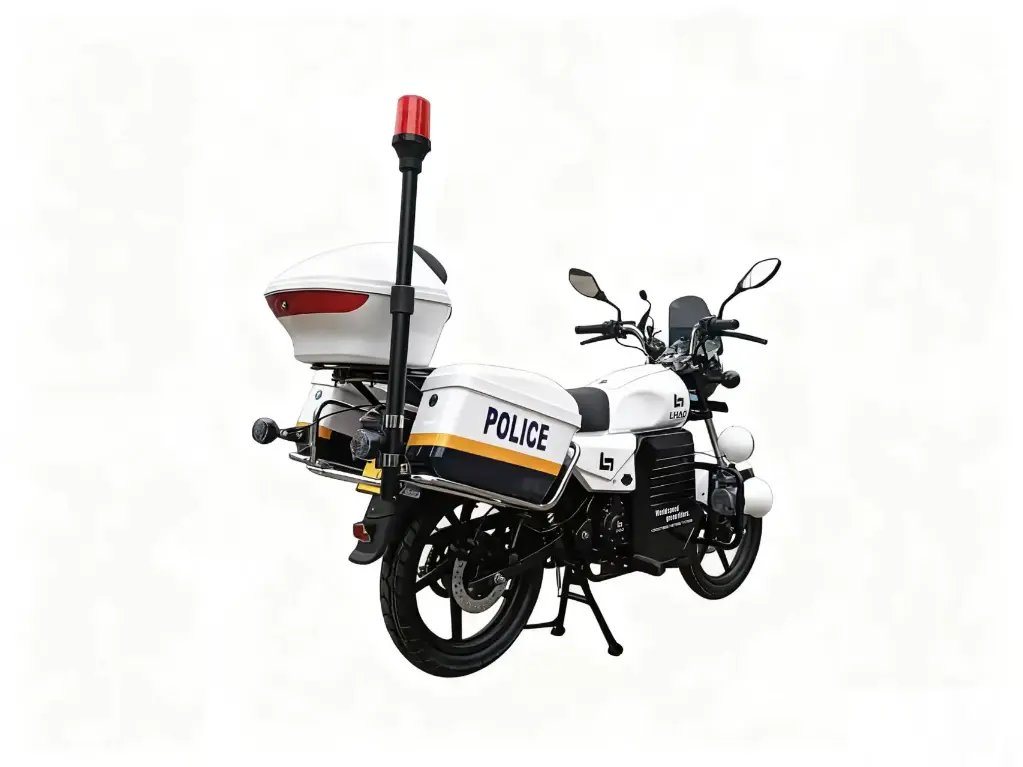

Engineered for elite law enforcement and security operations, the Tactical Electric Police Motorcycle combines powerful performance with advanced electric drive technology. Featuring a 3KW mid-drive motor, a top speed of 90 km/h, and a remarkable 150 km range, this agile electric motorcycle ensures rapid response, silent patrols, and superior climbing ability. Its robust design and quick-charge battery make it an indispensable asset for modern police forces.
Key Features for Law Enforcement & Security:
- Optimized for Patrol: Designed for rapid response, urban surveillance, and security operations.
- Powerful Performance: Experience quick acceleration and agile maneuverability with a potent 3KW mid-drive motor.
- Extended Range: Cover long distances with a significant range of ≥150 km, reducing the need for frequent charging.
- High Speed Capability: Reach speeds of up to 90 km/h for effective pursuit and patrol.
- Superior Climbing Ability: Tackle challenging terrains and steep inclines with a climbing degree of ≥45°.
- Fast Charging: Achieve a full charge in just 0.5-1 hour with fast-charging capability, minimizing downtime.
- Robust Load Capacity: Carry essential equipment and personnel with a maximum load capacity of 250 kg.
- Enhanced Security: The three-electric system software supports remote maintenance for quick troubleshooting and guidance.
- Eco-Friendly Operation: Zero emissions for silent, sustainable, and environmentally responsible policing.
Technical Specifications - Vehicle Performance:
- Rated Power: 3KW
- Drive Type: Mid-drive motor (YuMa or XinDou optional)
- Controller: 150A (PengJiang or HuoLi optional)
- Distance Range: ≥150 km
- Climbing Degree: ≥45°
- Maximum Speed: 90 km/h
- Charging Time: 0.5-1 hour (Fast Charge)
- Maximum Load: 250 kg
- Front Brakes: Disc brake
- Rear Brakes: Disc brake
- Transmission Type: Chain
- Vehicle Curb Weight: 112 kg
- Rear Shock Absorbers: Hydraulic twin-spring
- Front & Rear Tyres: FR: 2.70-17; RR: 3.00-17
- Wheelbase: 1260 mm
- Overall Dimensions (L×W×H): 2040 × 770 × 1050 mm
- Rated Speed: 5000 rpm
- Peak Power: ＞13kW
- Peak Torque: 557.3 N.m
- Peak Speed: 8000 rpm
- Maximum Efficiency: ＞90%
- Maximum Bus Current: 150A
- Maximum Phase Current (RMS): 260A
- Gear Ratio: 3.46
- Pole Pairs: 6 Pairs
- Position Sensor: Magnetic encoder
- Temperature Sensor: KTY84-130
- Insulation Class: H
- Protection Class: IP67
- Cooling Method: IC410
- Additional Function: Kinetic energy recovery
Technical Specifications - Battery System:
- Battery Type: Lithium Iron Phosphate (LiFePO4) (ShengLi, EVE, or LiYuan cells optional)
- Battery Capacity: 73.8V 80Ah
- Recharge Cycles: 2000
- Output Voltage: 73.8V
- Output Current: 120A (Rated); 360A (Peak)
- Input Voltage (Charger): 174~265VAC, 50/60Hz
- Input Current (Charger): 14A (at 100VAC); 15A (at 220VAC)
- Charging Temperature: 0~50℃
- Battery Cycle Life: ≥2000 cycles
- Battery Weight: 50 kg (subject to actual product)
- IP Rating: IPX7
- Battery Compartment Dimensions: 340 × 300 × 275 mm
Logistics & Packaging:
40HQ Container Quantity:
- CKD (Completely Knocked Down): 182 units
- SKD (Semi Knocked Down): 105 units (whole vehicle)
Warranty & Support:
- Motorcycle Warranty: One-year or 6000 km (whichever comes first)
- Battery Warranty: 1 year
- Support Services: Local supply and training services available.
- Remote Maintenance: Three-electric system software allows for remote maintenance, quick issue diagnosis, and remote troubleshooting guidance.
