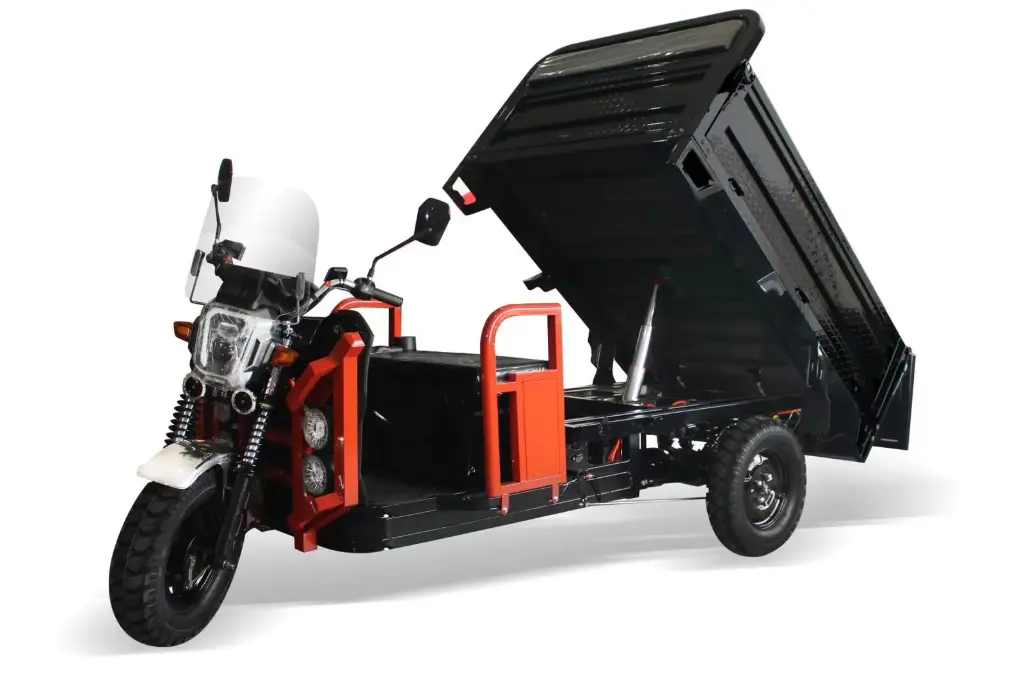

This compact electric dump truck offers powerful and eco-friendly material transport for various applications. Featuring a 2000W permanent magnet motor, a robust 800kg load capacity, and a durable steel plate suspension, it's designed for efficiency and reliability. Equipped with essential comforts like phone charging and Bluetooth audio, it's an ideal solution for construction, landscaping, and industrial sites.
Vehicle Configuration Parameters:
- Model No.: EDT-2000
- Overall Dimensions (L x W x H): 3340 x 1370 x 1450 mm
- Container Dimensions (L x W): 1800 x 1300 mm
- Seat Height: 700 mm
- Ground Clearance: 160 mm
- Track Width: 1160 mm
- Curb Weight: 330 kg (Excluding batteries)
- Load Capacity: 800 kg
- Tire Size: Front 5.00-12 / Rear 5.00-12
- Braking System: Front: Drum Hub / Rear: Drum Hub
- Rear Axle: 220 Hub
- Front Suspension: 43mm External Spring Damping
- Rear Suspension: Double steel plate structure, five-leaf spring plate, non-load-bearing
- Instrument Panel: LCD Instrument Display
- Headlights: LED Headlights
Power System Configuration:
- Motor: 2000W Permanent Magnet Motor
- Controller: 30 Mousse Tube
- Maximum Speed: 40 km/h
- Maximum Torque: 40 N.m
- Start Mode: Electronic Control
Other Features:
- Phone Charging: Yes (Integrated)
- Bluetooth Audio: Yes
